Surface Development and Fabrication of a Precision-Fit Funnel Using the Radial Line Method

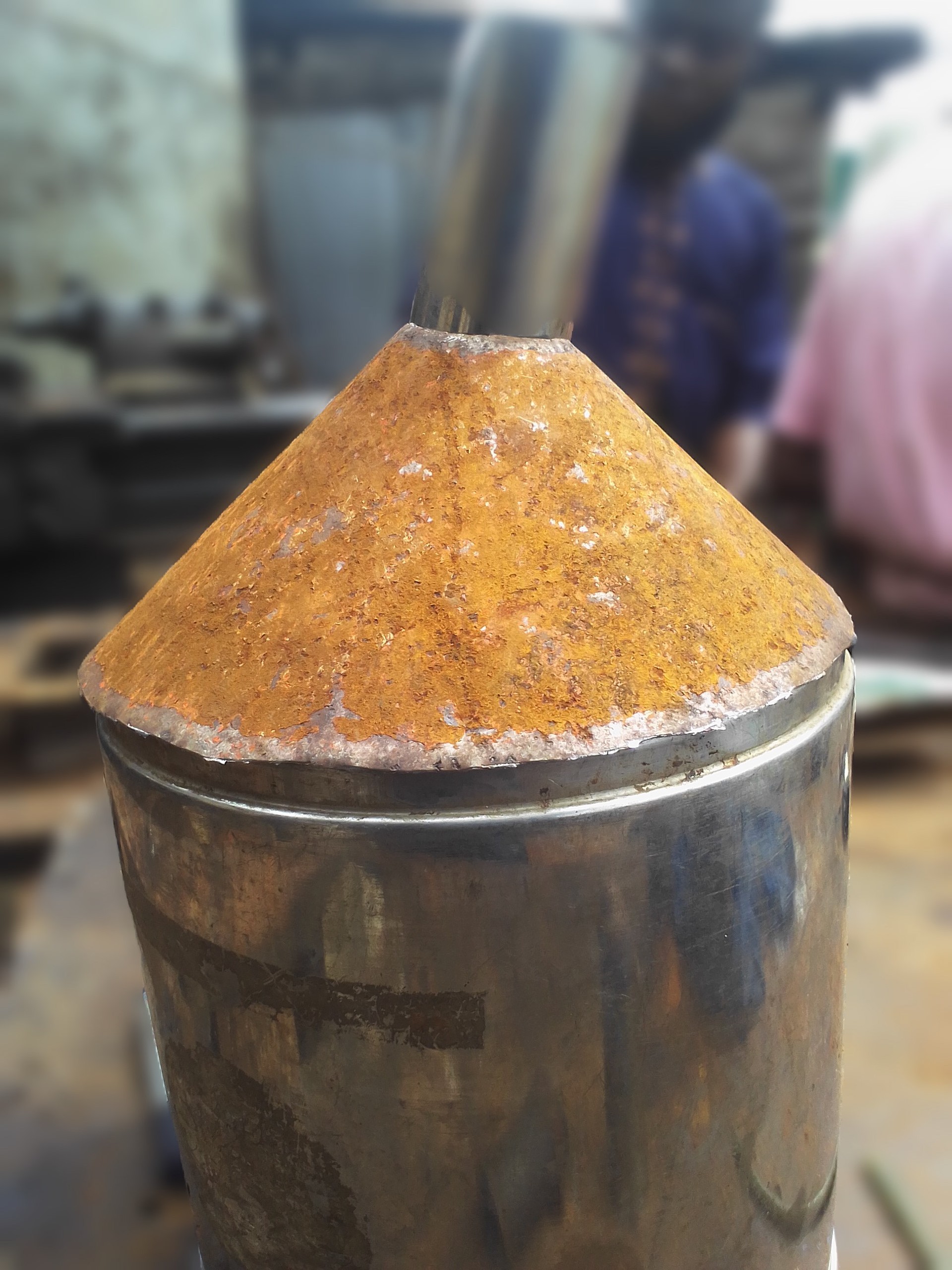

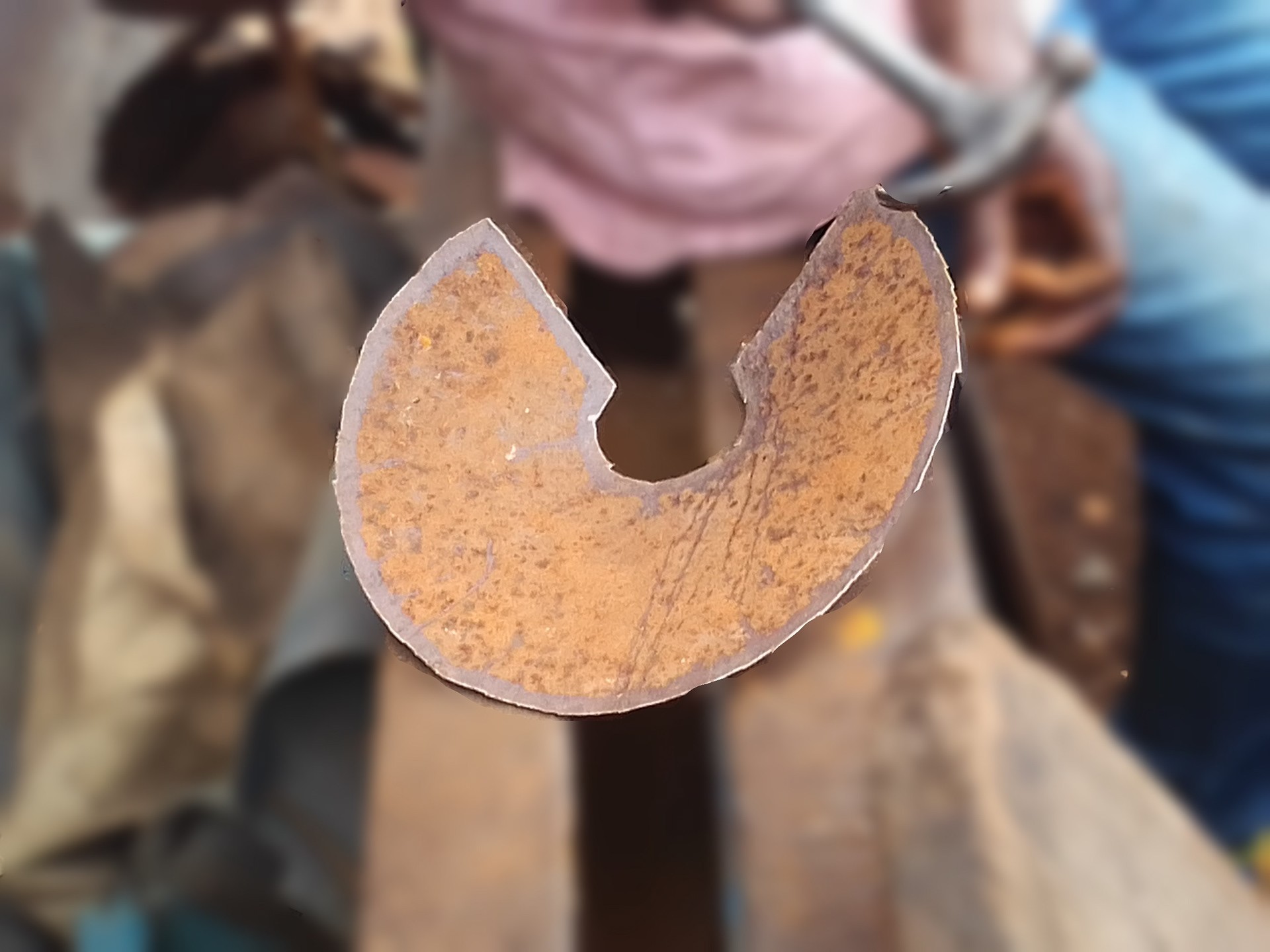

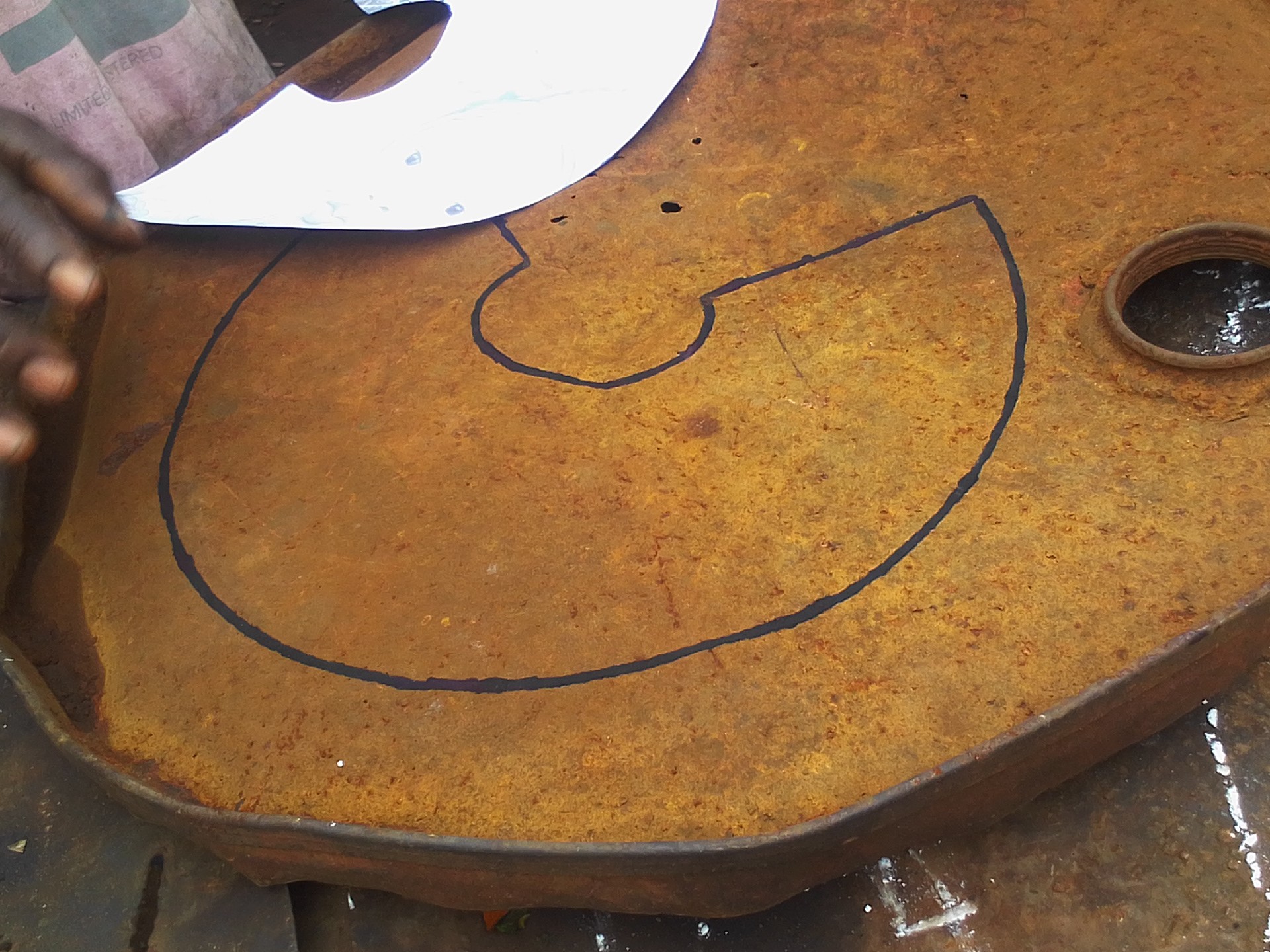

A funnel designed and fabricated to be welded seamlessly onto another component. Using the Radial Line Method of surface development, the project ensured precise geometry, accurate fitting, and a clean finish, eliminating the trial-and-error techniques often used in manual fabrication
